[Thunderbolt ] Thunderbolt 线材结构

P:2012-04-03 10:57:29

1

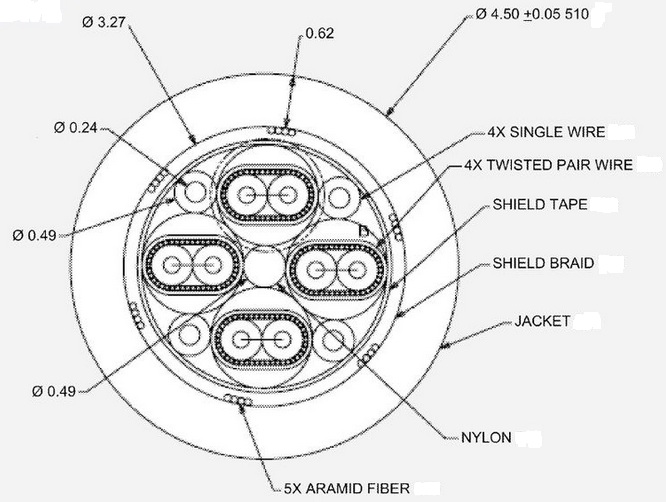

Thunderbolt 线材结构,OD4.5,四对高频芯线,中间NYLON填充

[active 在 2012-4-3 10:58:41 编辑过]



pressure nozzle - 压力喷嘴 点赞(0) 投诉

P:2012-04-03 11:30:28

2

下载 。。。


SIS - Swedish Standard Institution瑞典标准协会<于1922年成立> 点赞(0) 投诉

P:2012-04-19 11:03:32

3

下载!长长见识!

steam-heated continuous vulcanizing process - 蒸汽加热连续硫化工艺 点赞(0) 投诉

P:2012-04-26 18:58:13

4

长长见识长长见识

forming equipment - 成型设备 点赞(0) 投诉

P:2012-04-26 22:59:10

5

comment - 注释, 评论, 意见 点赞(0) 投诉

P:2012-05-04 14:25:48

6

這也拿來賣錢???

MC2 - modern coaxial cable现代同轴电缆 点赞(0) 投诉

P:2012-05-08 16:45:26

7

世道乱了呀,什么都拿来赚钱!我有免费的!

tower wagon - 梯车,塔车(修理电线用) 点赞(0) 投诉

P:2012-05-11 14:37:51

8

一个截面图而已,还有20金币,太会歉了吧



powder applicator - 粉末涂敷器,粉末装置 点赞(0) 投诉

P:2012-05-11 16:06:57

9

想钱想疯了啊



stress relaxation test - 应力松弛试验 点赞(0) 投诉

P:2012-05-12 08:48:04

10

最新资料就得投入点东西吧



complete enamelling plant - 全套漆包设备 点赞(0) 投诉

P:2012-05-12 09:00:05

11

說的是,有CHIP的資料嗎?

ordinary quad - 普通四线组 点赞(0) 投诉

P:2012-05-12 09:41:42

12

CHIP的資料在网上搜索一下看有没有!



field telephone wire - 野外用电话线,野战电话线 点赞(0) 投诉

P:2012-05-12 09:47:09

13

New Thunderbolt chips, dubbed Cactus Ridge, coming in 2012

<DIV class=post_info sizset="0" sizcache="2223"><DIV class=post_byline sizset="0" sizcache="2223"> </DIV><DIV class=post_content_types><DIV class=post_category></DIV><DIV class=clear></DIV></DIV><DIV class=clear></DIV></DIV><DIV class=post_body sizset="0" sizcache="2334"><DIV style="TEXT-ALIGN: center" sizset="0" sizcache="2334">Cactus Ridge</DIV>Thunderbolt is certainly taking its sweet time catching on, but Intel isn't about to give up yet. In 2012 the company will be rolling out Cactus Ridge, a replacement for it's current Light Ridge and Eagle Ridge solutions. There will be two versions: a quad Thunderbolt channel, dual DisplayPort model (replacing the similarly speced Light Ridge); and a dual T-bolt, single DisplayPort edition (taking over for Eagle Ridge). Exactly when they'll land next year or how much it'll cost OEMs to shoehorn the controllers into their machines is still a mystery, but we're holding out hope that this time next year the 10Gbps jacks will be in every Dell, Acer and Apple.</DIV>

equipment optical fiber cable - 设备用电缆 点赞(0) 投诉

P:2012-05-12 10:14:19

14

接点:

Pin out

Pin 1

GND

Ground



Pin 2

HPD

Hot Plug Detect



Pin 3

HS0TX(P)

HighSpeed Transmit 0 (positive)



Pin 4

HS0RX(P)

HighSpeed Receive 0 (positive)



Pin 5

HS0TX(N)

HighSpeed Transmit 0 (negative)



Pin 6

HS0RX(N)

HighSpeed Receive 0 (negative)



Pin 7

GND

Ground



Pin 8

GND

Ground



Pin 9

LSR2P TX

LowSpeed Transmit



Pin 10

GND

Ground (reserved)



Pin 11

LSP2R RX

LowSpeed Receive



Pin 12

GND

Ground (reserved)



Pin 13

GND

Ground



Pin 14

GND

Ground



Pin 15

HS1TX(P)

HighSpeed Transmit 1 (positive)



Pin 16

HS1RX(P)

HighSpeed Receive 1 (positive)



Pin 17

HS1TX(N)

HighSpeed Transmit 1 (negative)



Pin 18

HS1RX(N)

HighSpeed Receive 1 (negative)



Pin 19

GND

Ground



Pin 20

DPPWR

Power



This is the pinout for both sides of the connector, source side and sink side. The cable is actually a crossover cable, it swaps all receive and transmit lanes, e.g. HS1TX(P) of the source is connected to HS1RX(P) of the sink.

expansion joint - 伸缩接头 点赞(0) 投诉

P:2012-05-22 23:06:21

15

感谢!大公无私~
